一、插件简介
二、插件安装
1、确定卷映射目录
运行结果：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
| "Mounts": [
{
"Type": "volume",
"Name": "rabbitmq-plugin",
"Source": "/var/lib/docker/volumes/rabbitmq-plugin/_data",
"Destination": "/plugins",
"Driver": "local",
"Mode": "z",
"RW": true,
"Propagation": ""
},
{
"Type": "volume",
"Name": "cca7bc3012f5b76bd6c47a49ca6911184f9076f5f6263b41f4b9434a7f269b11",
"Source": "/var/lib/docker/volumes/cca7bc3012f5b76bd6c47a49ca6911184f9076f5f6263b41f4b9434a7f269b11/_data",
"Destination": "/var/lib/rabbitmq",
"Driver": "local",
"Mode": "",
"RW": true,
"Propagation": ""
}
]
|
和容器内/plugins目录对应的宿主机目录是：/var/lib/docker/volumes/rabbitmq-plugin/_data
2、下载延迟插件
官方文档说明页地址：https://www.rabbitmq.com/community-plugins.html
下载插件安装文件：
1
2
| wget https://github.com/rabbitmq/rabbitmq-delayed-message-exchange/releases/download/v3.13.0/rabbitmq_delayed_message_exchange-3.13.0.ez
mv rabbitmq_delayed_message_exchange-3.13.0.ez /var/lib/docker/volumes/rabbitmq-plugin/_data
|
3、启用插件
1
2
3
4
5
6
7
8
9
10
11
| # 登录进入容器内部
docker exec -it rabbitmq /bin/bash
# rabbitmq-plugins命令所在目录已经配置到$PATH环境变量中了，可以直接调用
rabbitmq-plugins enable rabbitmq_delayed_message_exchange
# 退出Docker容器
exit
# 重启Docker容器
docker restart rabbitmq
|
4、确认

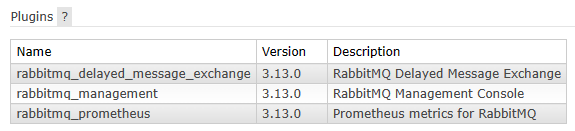

确认点1：查看当前节点已启用插件的列表：

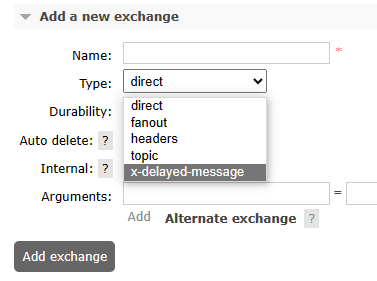

确认点2：如果创建新交换机时可以在type中看到x-delayed-message选项，那就说明插件安装好了
三、创建交换机

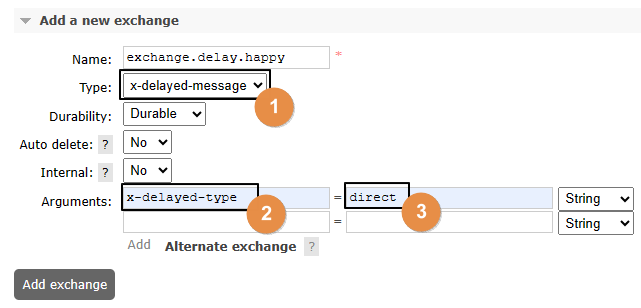

rabbitmq_delayed_message_exchange插件在工作时要求交换机是x-delayed-message类型才可以，创建方式如下：
关于x-delayed-type参数的理解：
原本指定交换机类型的地方使用了x-delayed-message这个值，那么这个交换机除了支持延迟消息之外，到底是direct、fanout、topic这些类型中的哪一个呢？
这里就额外使用x-delayed-type来指定交换机本身的类型
四、代码测试
1、生产者端代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
| @Test
public void testSendDelayMessage() {
rabbitTemplate.convertAndSend(
EXCHANGE_DELAY,
ROUTING_KEY_DELAY,
"测试基于插件的延迟消息 [" + new SimpleDateFormat("hh:mm:ss").format(new Date()) + "]",
messageProcessor -> {
messageProcessor.getMessageProperties().setHeader("x-delay", "10000");
return messageProcessor;
});
}
|
2、消费者端代码
①情况A：资源已创建
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
| package com.atguigu.mq.listener;
import com.rabbitmq.client.Channel;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.util.Date;
@Component
@Slf4j
public class MyDelayMessageListener {
public static final String QUEUE_DELAY = "queue.delay.video";
@RabbitListener(queues = {QUEUE_DELAY})
public void process(String dataString, Message message, Channel channel) throws IOException {
log.info("[生产者]" + dataString);
log.info("[消费者]" + new SimpleDateFormat("hh:mm:ss").format(new Date()));
channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
}
}
|
②情况B：资源未创建
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
| package com.atguigu.mq.listener;
import com.rabbitmq.client.Channel;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.*;
import org.springframework.stereotype.Component;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.util.Date;
@Component
@Slf4j
public class MyDelayMessageListener {
public static final String EXCHANGE_DELAY = "exchange.delay.video";
public static final String ROUTING_KEY_DELAY = "routing.key.delay.video";
public static final String QUEUE_DELAY = "queue.delay.video";
@RabbitListener(bindings = @QueueBinding(
value = @Queue(value = QUEUE_DELAY, durable = "true", autoDelete = "false"),
exchange = @Exchange(
value = EXCHANGE_DELAY,
durable = "true",
autoDelete = "false",
type = "x-delayed-message",
arguments = @Argument(name = "x-delayed-type", value = "direct")),
key = {ROUTING_KEY_DELAY}
))
public void process(String dataString, Message message, Channel channel) throws IOException {
log.info("[生产者]" + dataString);
log.info("[消费者]" + new SimpleDateFormat("hh:mm:ss").format(new Date()));
channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
}
}
|
3、执行效果
①交换机类型

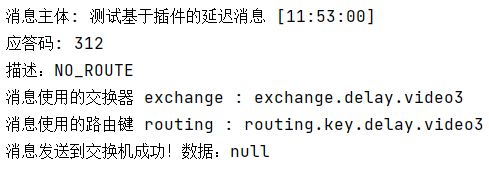

②生产者端效果
注意：使用rabbitmq_delayed_message_exchange插件后，即使消息成功发送到队列上，也会导致returnedMessage()方法执行
③消费者端效果
